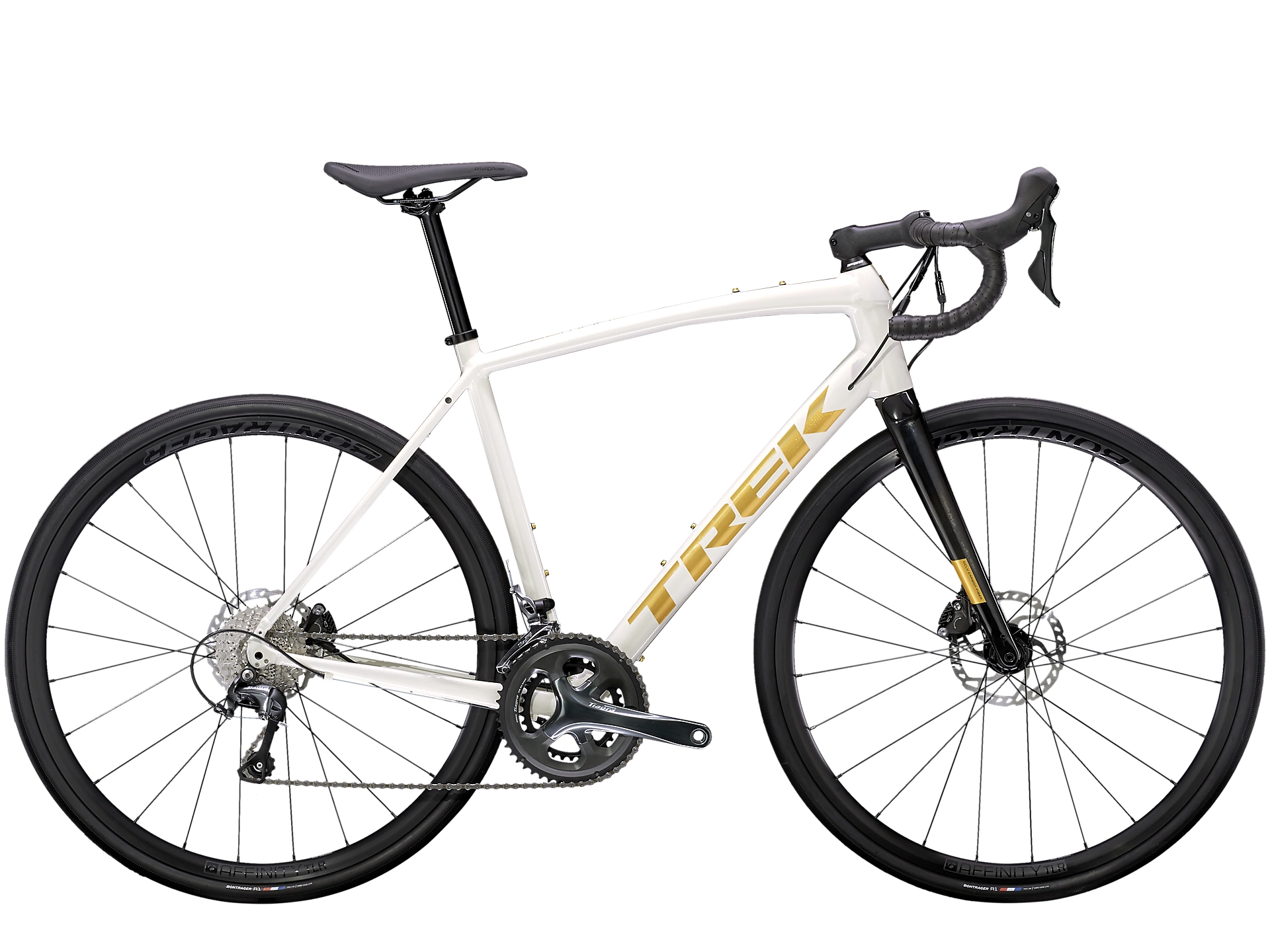

TREK Domane AL 4 2022年モデル
カラー
コメント
Domane AL 4 Discは最先端のアルミフレームによるスムーズで快適な走りを、高品質パーツのパフォーマンスと融合させている。
アップグレードしたドライブトレインに油圧式ディスクブレーキを組み合わせ、グループライドやレースといったハイペースのライドに適している
仕様
スペック
- フレーム

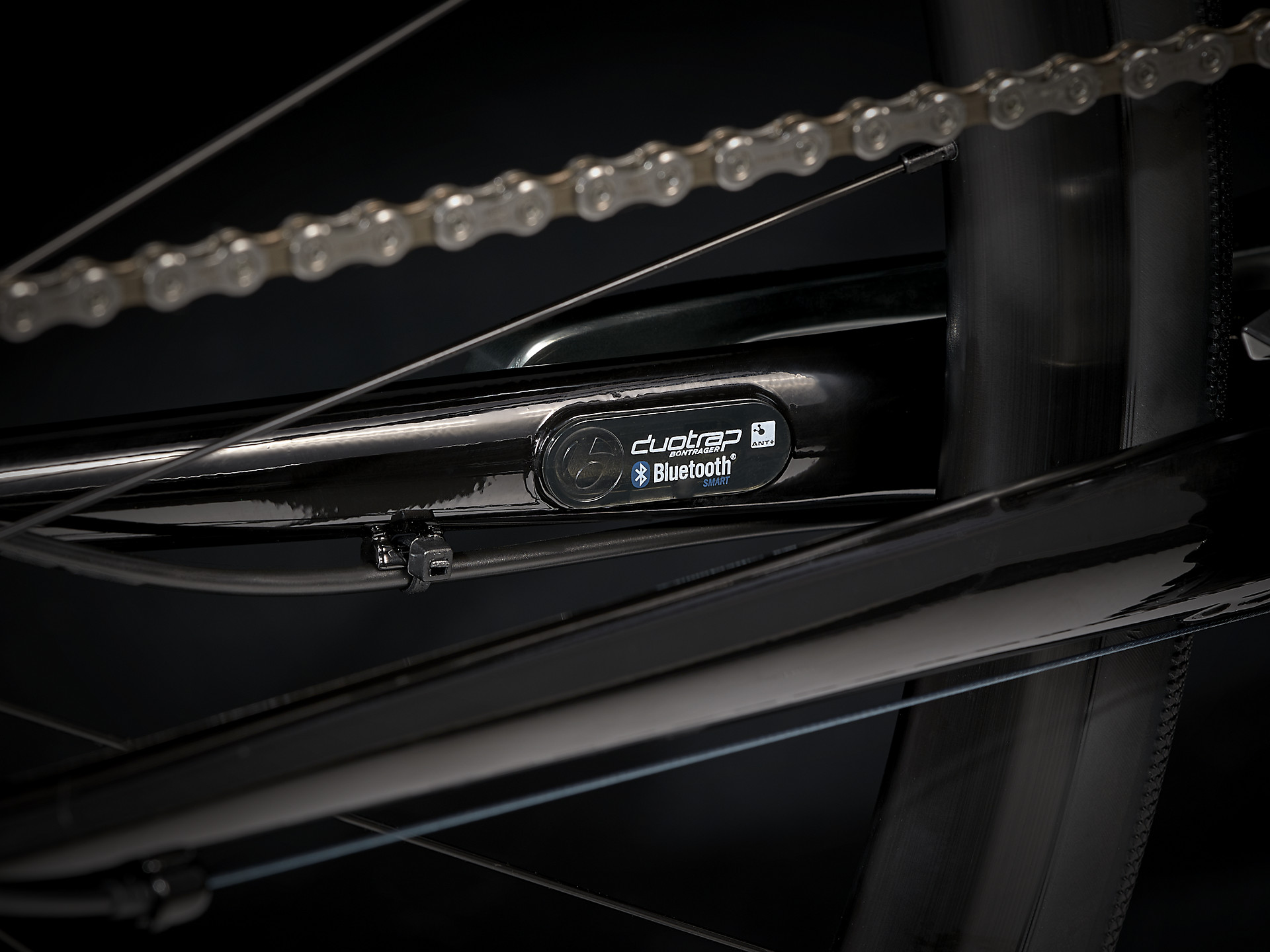

- 100 Series Alpha Aluminum, tapered head tube, internal routing, fender mounts, DuoTrap S compatible, flat mount disc, 142x12
- フォーク
- Domane AL carbon, tapered alloy steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
- フレーム フィット
- Endurance
- フロントハブ
- Formula RX-512 alloy, 6-bolt, 100x12mm thru axle
- フロントスキュワー
- Bontrager Switch thru axle, removable lever
- リアハブ
- Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12mm thru axle
- リアスキュワー
- Bontrager Switch thru axle, removable lever
- リム
- Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21mm width, presta valve
- タイヤ
- Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32c
- 最大タイヤサイズ
- 35c without fenders, 32c with fenders
- シフター
- Shimano Tiagra R4725, short reach lever, 10 speed
- フロントディレイラー
- Shimano Tiagra 4700, 31.8mm clamp
- リアディレイラー
- Shimano Tiagra 4700, long cage, 34T max cog
- クランク
- Size: 44 Shimano Tiagra 4700, 50/34, 165mm length
- Size: 49, 52 Shimano Tiagra 4700, 50/34, 170mm length
- Size: 54, 56 Shimano Tiagra 4700, 50/34, 172.5mm length
- Size: 58, 61 Shimano Tiagra 4700, 50/34, 175mm length
- ボトムブラケット
- Shimano RS500, 68mm, threaded external
- カセット(スプロケット)
- Shimano HG500, 11-32, 10 speed
- チェーン
- Shimano Tiagra HG54, 10 speed
- サドル
- Size: 44, 49, 52 Bontrager P3 Verse Comp, steel rails, 155mm width
- Size: 54, 56, 58, 61 Bontrager P3 Verse Comp, steel rails, 145mm width
- シートポスト
- Size: 44, 49 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 250mm length
- Size: 52, 54, 56, 58, 61 Bontrager Comp, 6061 alloy, 27.2mm, 8mm offset, 330mm length
- ハンドルバー
- Size: 44, 49 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
- Size: 52 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width
- Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
- Size: 58, 61 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
- ハンドルバーテープ
- Bontrager Supertack Perf tape
- ステム
- Size: 44 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
- Size: 49 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
- Size: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
- Size: 56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
- Size: 61 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
- ヘッドセット
- FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
- ブレーキ
- Shimano Tiagra hydraulic disc
- ブレーキローター
- Size: 44, 49, 52, 54, 56, 58, 61 Shimano RT66, 160mm, 6-bolt
- Size: 44, 49, 52, 54, 56, 58, 61 Shimano RT66, 6-bolt, 160mm
- 重量
- 56 - 10.48 kg / 23.11 lbs
- 体重制限
- このバイクの重量制限(バイク本体、ライダー、装備含む)は275ポンド(125kg)です。
