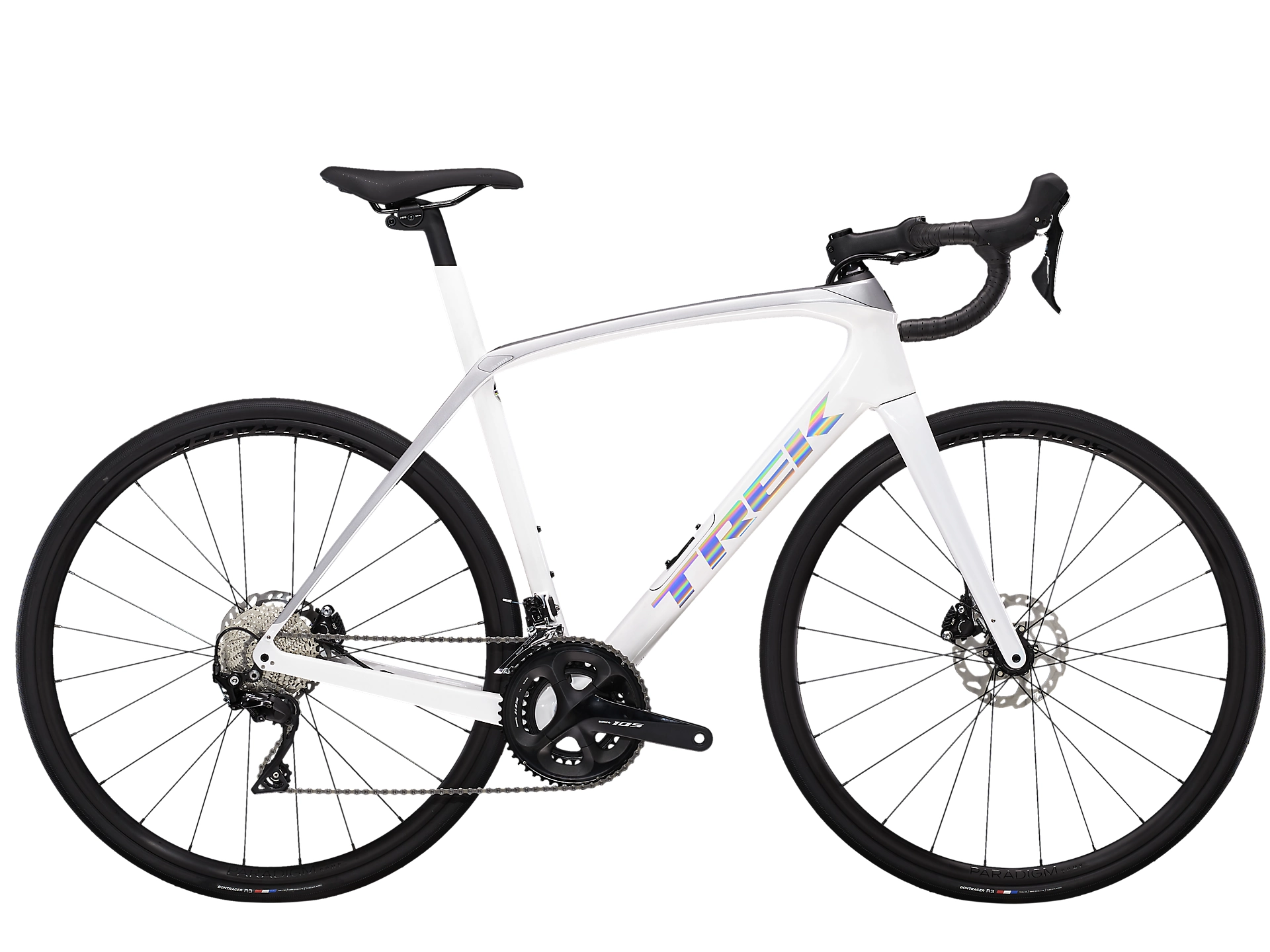

TREK Domane SL 5 2022年モデル
カラー
コメント
Domane SL 5は、スムーズな走り、速さや、多用途さを追求した1台。軽いOCLV カーボンフレームは、前後にIsoSpeedを搭載し、路面振動を和らげて疲労を軽減。
したがって、ロングライドをより力強く走れるのだ。信頼性の高いShimano 105 ドライブトレイン、天候を問わないディスクブレーキ、ライドの必需品を収納できるアクセスしやすい内蔵ストレージも採用する。
ロットによりサイドウォールがブラックのタイヤが付属します。ご了承ください。
スペック
- フレーム
- 500 Series OCLV Carbon, front & rear IsoSpeed, internal storage, tapered head tube, internal cable routing, 3S chain keeper, DuoTrap S compatible, fender mounts, flat mount disc, 142x12mm thru axle
- フォーク
- Size: 44, 47 Domane SLR carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, carbon dropouts, 12x100mm thru axle
- Size: 50, 52, 54, 56, 58, 60 Domane SL carbon, tapered carbon steerer, internal brake routing, fender mounts, flat mount disc, 12x100mm thru axle
- フレーム フィット
- Endurance
- フロントハブ
- Bontrager alloy, sealed bearing, centerlock disc, 100x12mm thru axle
- フロントスキュワー
- Bontrager Switch thru axle, removable lever
- リアハブ
- Bontrager alloy, sealed bearing, centerlock disc, Shimano 11-speed freehub, 142x12mm thru axle
- リアスキュワー
- Bontrager Switch thru axle, removable lever
- リム
- Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21mm width, presta valve
- タイヤ
- Bontrager R3 Hard-Case Lite, Tubeless Ready, aramid bead, 120 tpi, 700x32c
- タイヤパーツ
- Bontrager TLR sealant, 6oz
- リムストリップ
- Size: 44, 47, 50, 52, 54, 56, 58, 60 Bontrager Aeolus XXX rim strip
- Size: 44, 47, 50, 52, 54, 56, 58, 60 Bontrager TLR
- 最大タイヤサイズ
- 38c
- シフター
- Size: 44, 47, 50, 52 Shimano 105 R7025, short-reach lever, 11 speed
- Size: 54, 56, 58, 60 Shimano 105 R7020, 11 speed
- フロントディレイラー
- Shimano 105 R7000, braze-on
- リアディレイラー
- Shimano 105 R7000, long cage, 34T max cog
- クランク
- Size: 44, 47 Shimano 105 R7000, 50/34 (compact), 165mm length
- Size: 50, 52 Shimano 105 R7000, 50/34 (compact), 170mm length
- Size: 54, 56 Shimano 105 R7000, 50/34 (compact), 172.5mm length
- Size: 58, 60 Shimano 105 R7000, 50/34 (compact), 175mm length
- ボトムブラケット
- Praxis, T47 threaded, internal bearing
- カセット(スプロケット)
- Shimano 105 HG700-11, 11-34, 11 speed
- チェーン
- Shimano 105 HG601, 11 speed
- サドル
- Bontrager P3 Verse Comp, steel rails, 145mm width
- シートポスト
- Size: 44, 47, 50, 52, 54, 56 Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, short length
- Size: 58, 60 Bontrager carbon internal seatmast cap, integrated light mount, 20mm offset, tall length
- ハンドルバー
- Size: 44, 47 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 36cm width
- Size: 50 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 38cm width
- Size: 52 Bontrager Comp VR-S, alloy, 31.8mm, 81mm reach, 118mm drop, 40cm width
- Size: 54, 56 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 42cm width
- Size: 58, 60 Bontrager Comp VR-C, alloy, 31.8mm, 100mm reach, 124mm drop, 44cm width
- ハンドルバーテープ
- Bontrager Supertack Perf tape
- ステム
- Size: 44 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 60mm length
- Size: 47 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 70mm length
- Size: 50 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 80mm length
- Size: 52, 54 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 90mm length
- Size: 56, 58 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 100mm length
- Size: 60 Bontrager Elite, 31.8mm, Blendr compatible, 7 degree, 110mm length
- ブレーキローター
- Shimano SM-RT70, centerlock, 160mm
- バッグ
- Bontrager BITS Internal Frame Storage Bag
- 重量
- 56 - 9.20 kg / 20.29 lbs
- 体重制限
- このバイクの重量制限(バイク本体、ライダー、装備含む)は275ポンド(125kg)です。
